mivoc AM 80 MK II Subwoofer Aktivmodul 80 Watt

Name: mivoc AM 80 MK II Subwoofer Aktivmodul 80 Watt
SKU: 11000802
Availability: InStock

99,00 €

inkl. 19 % MwSt. zzgl. Versandkosten (außerhalb Deutschlands)

This price applies to Germany, are you somewhere else?

Delivery time 2-5 days (Payment and shipping information)

Providing 80 watts (rms) into 4 ohms, the AM 80 MK II subwoofer module offers sufficient power for plenty of bass. The module reliably drives woofers with a diameter of up to 25 cm, while the numerous adjustment and connection options ensure optimum customisability. With the AM 80MKII amplifier module, you can rely on a simple and convenient solution for your DIY subwoofer project.

Mono subwoofer amplifier module

80 watts (rms) into 4 ohms

Suitable for bass chassis up to approx. 25 cm diameter

Do you like building your own loudspeakers and need a suitable amplifier module for your next subwoofer project? Then we have the AM 80MKII subwoofer module for you. Our mivoc amplifier module is already used in countless loudspeaker projects and impresses with its reliable performance and great features.

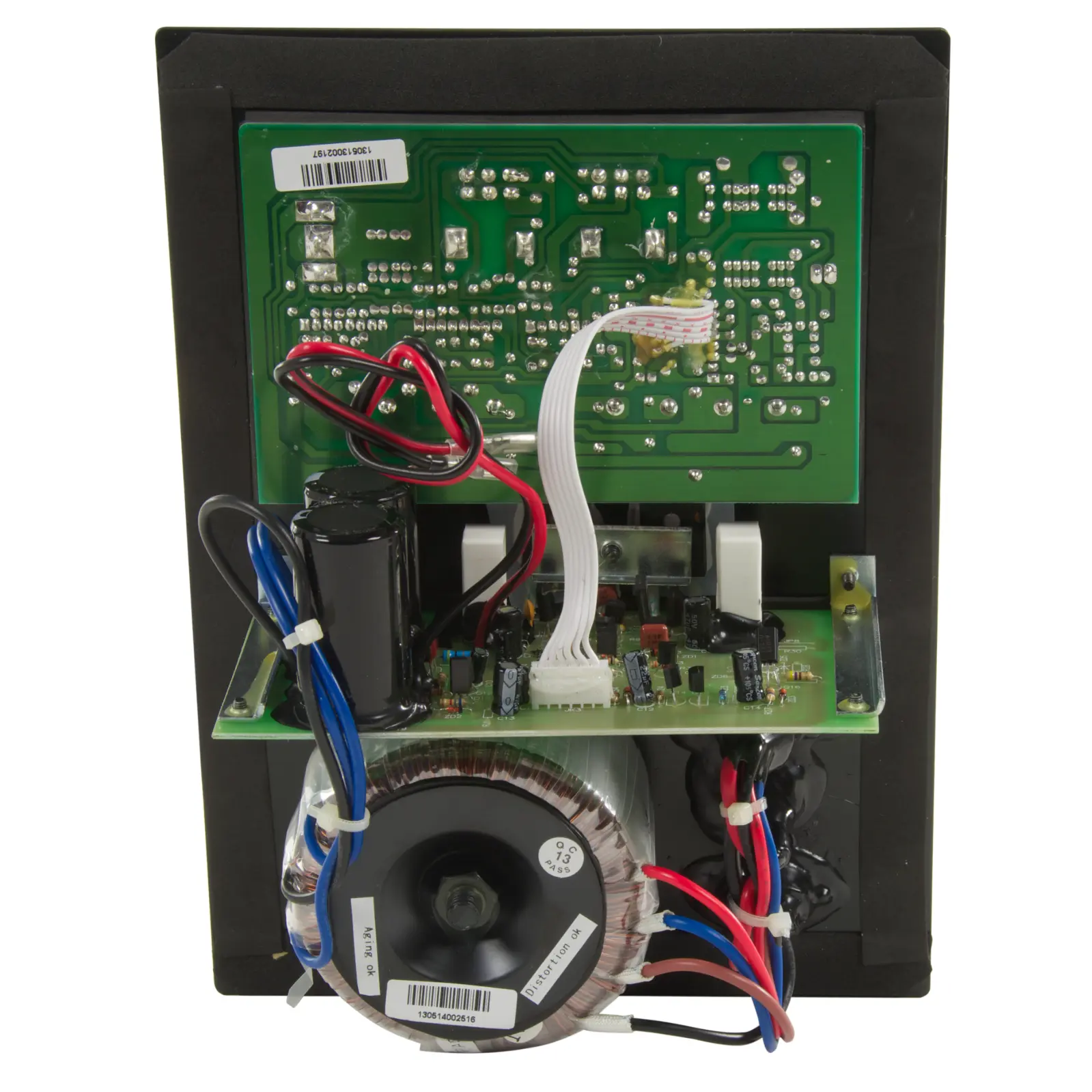

The powered module delivers 80 watts (rms) into 4 ohms and is very stable in performance and almost hum-free in operation thanks to the toroidal transformer. The AM 80 MK II subwoofer module offers both RCA sockets (Line In) and connection terminals (High Level IN from the hi-fi amplifier), whereby the signal is passed through to the High Level Out unfiltered. It was specially developed for woofers with a diameter of up to 25 cm and offers flexible customisation options with a frequency transmission range of 30-180 Hz and a continuously adjustable crossover frequency of 40-180 Hz. With an internal and fixed bass boost of around 3 dB at 37 Hz, a subsonic filter at 30 Hz (18 dB slope), a phase switch and an automatic on/off switch, the AM 80 MK II is a proven amplifier module for sound quality and user-friendliness.

The AM 80 MK II is designed for self-powered subwoofers and is ideally installed in the rear wall of the enclosure. It is important that a distance of at least 5 cm to the nearest boundary surface is maintained. Also make sure that there is sufficient clearance to insulating material. A rectangular cut-out measuring 152 x 218 mm is required in the housing for installation. The module is then inserted into this cut-out and screwed into place.

Here is some important information:

Please note that the amplifier module may ONLY be put into operation if it is installed in an enclosure and a loudspeaker chassis is correctly connected. In addition, the module must NOT be operated in a humid environment. If you wish to use this amplifier module, we assume that you have specialist knowledge and that you comply with the usual regulations and safety measures for handling electrically powered devices. mivoc is not liable for any damage to health or objects that may arise from improper use or handling of this product.

Boasting an output of 80 watts (rms)/150 watts (peak), this subwoofer module delivers plenty of power for powerful and deep bass.

Proven technology for building self-powered hi-fi subwoofers. Thanks to the toroidal transformer, the AM 80 MK II is not only powerful, but also almost hum-free.

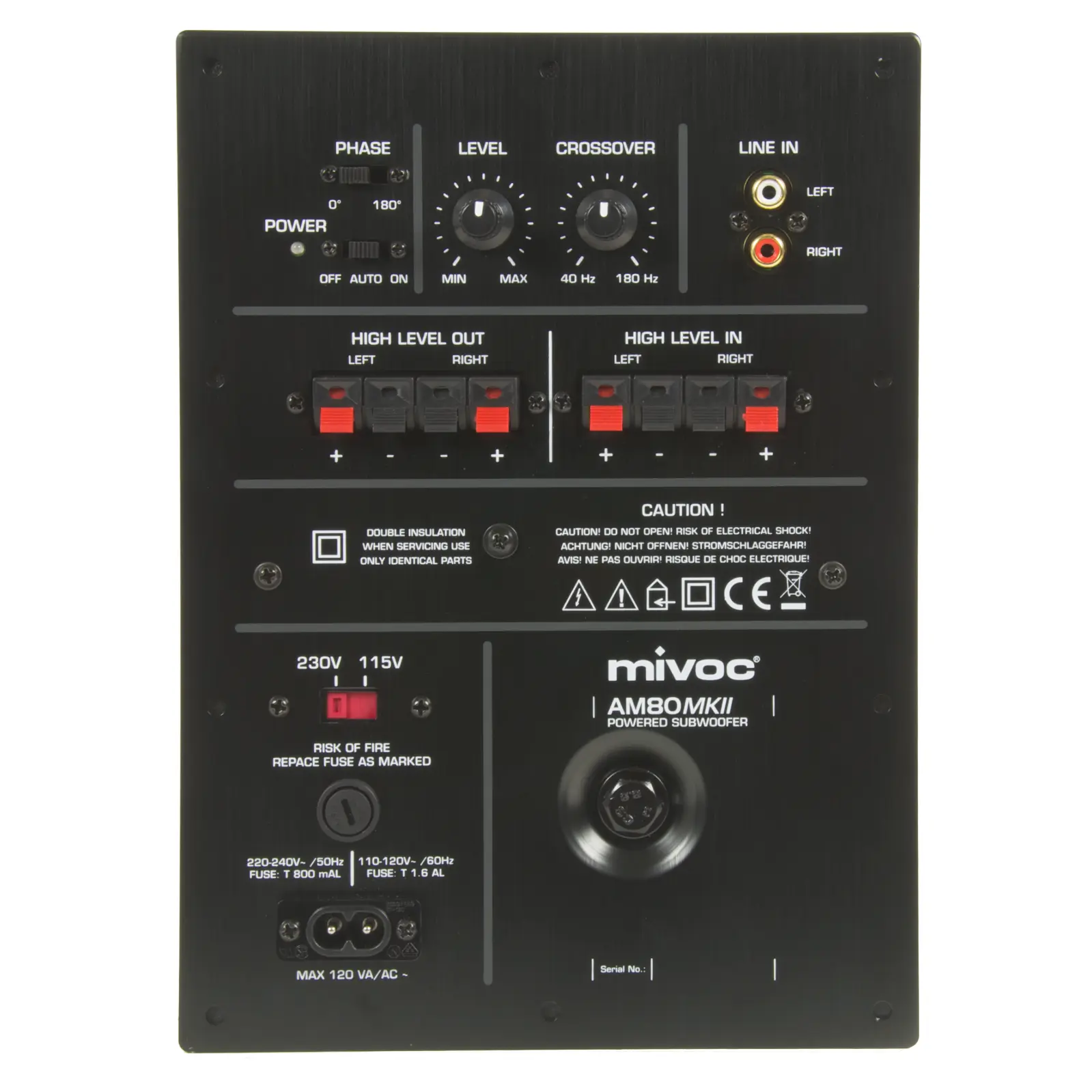

Equipped with line-level inputs, high-level inputs and outputs, auto-power mode, crossover, level and phase controls, there are many connection and personalisation options.

Technical Data

Frequency range	30 Hz - 180 Hz
Crossover frequency	40 Hz - 180 Hz (adjustable)
Output power	150 W (programme) /80 W (rms)
Features	Phase (0°, 180°) Automatic on/off switch (on, auto, off) Subsonic filter Low-pass filter with crossover frequency adjustable from 40 Hz - 180 Hz Adjustable volume (level)
Inputs	Stereo HIGH LEVEL (4-16 Ohm) Mono/stereo RCA (cinch)
Outputs	Stereo HIGH LEVEL (4 - 16 Ohm)
Control elements	Level controller Crossover controller Phase switch Power switch Mains voltage switch (230 V, 115 V)
Operating voltage	switchable, 220 - 240 VAC / 50 Hz or 110 - 120 VAC / 60 Hz
Power supply	Euro plug CEE 7/16 (type C), max. 120 VA/AC
Product dimensions [W x H x D]	180 x 248 x 85 mm
Weight	1.9 kg
Weight with packaging	2.6 kg
