Verstärker

mivoc HA200 BT

Name: mivoc HA200 BT
SKU: ST010000A022
Price: 249.00 EUR
Availability: InStock

249,00 €

inkl. 19 % MwSt. zzgl. Versandkosten (außerhalb Deutschlands)

This price applies to Germany, are you somewhere else?

Delivery time 2-5 days (Payment and shipping information)

Immerse yourself in the world of sound with the mivoc HA200 BT stereo amplifier. This Hi-Fi amplifier not only drives your passive Hi-Fi speakers accurately and reliably, but also offers a combination of state-of-the-art technology and timeless design. With various analogue and digital signal inputs, the HA200 BT enables seamless integration into your existing setup. Easily connect your favourite audio devices and enjoy top-quality sound. For even more depth and power, you can, for example, connect the mivoc hYPE 10 subwoofer directly to the subwoofer output of the amplifier.

Stereo-HiFi amplifier

Simple and true listening pleasure

Compact and elegant

Wireless freedom and versatility

Experience the freedom of wireless audio signal transmission with the HA200 BT's integrated Bluetooth® receiver. Easily connect compatible Bluetooth® devices such as smartphones, tablets, computers or streaming sticks and enjoy your favourite music without tangled cables. In addition, the HA200 BT offers a USB port (type B) with automatic sampling frequency adaptation, allowing you to transfer audio signals from USB devices such as computers in the best possible quality.

Versatile connection options for your setup

The HA200 BT Stereo-HiFi amplifier is the perfect solution for all your audio sources. Equipped with an optical and an electrical stereo digital input (OPT. IN and COAX IN), it offers maximum flexibility when connecting peripheral devices, both with automatic sampling frequency adaptation. There is also an analogue, unbalanced stereo line input (AUX IN), which makes it possible to connect devices with a stereo analogue output. An additional unbalanced subwoofer output (SUB OUT) lets you combine the amplifier with a subwoofer with integrated amplifier to achieve an ultra-deep, full sound image.

Powerful performance and ease of use in an elegant design

With a full 2x 100 watts of output power, an efficiency of over 90% and a wide dynamic range, the mivoc HA200 BT ensures that you hear your music exactly as it should be. Thanks to the presets and tone control, you can easily customise the system to your individual Hi-Fi setup and sound preferences. The amplifier can be conveniently controlled via the remote control or directly on the device. For audiophiles who use external preamps or sound processors, there is the Direct function, which can be used to switch off the sound processing completely. With its elegant, unobtrusive design and compact dimensions of just 23 x 10 x 21 cm, the HA200 BT blends harmoniously into any room concept.

Technical Data

Frequency range	20 Hz - 20 kHz [1]
Performance efficiency	> 90%
Output power	2x 100 watts @ 4 ohms [2]
Amplifier type	Class-D amplifier
Number of channels	2
Min. impedance/impedance range	4 Ohm / 4 - 16 Ohm
Inputs	Bluetooth®, Analogue input (RCA/Cinch), Electrical digital input (S/PDIF), Optical digital input (Toslink), USB (Type B)

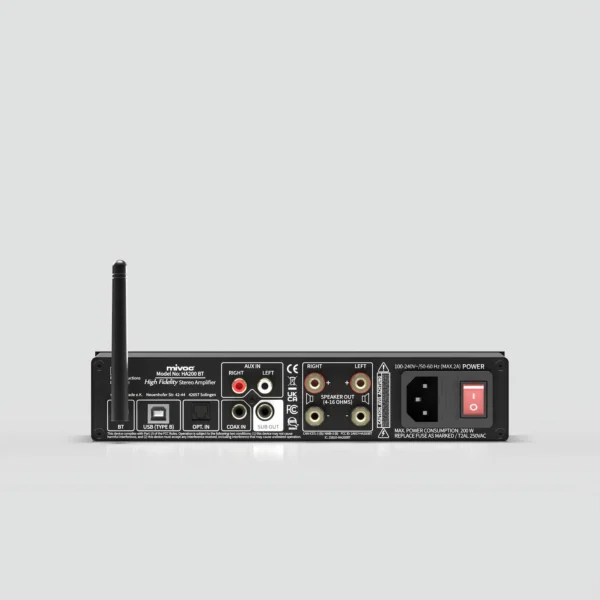

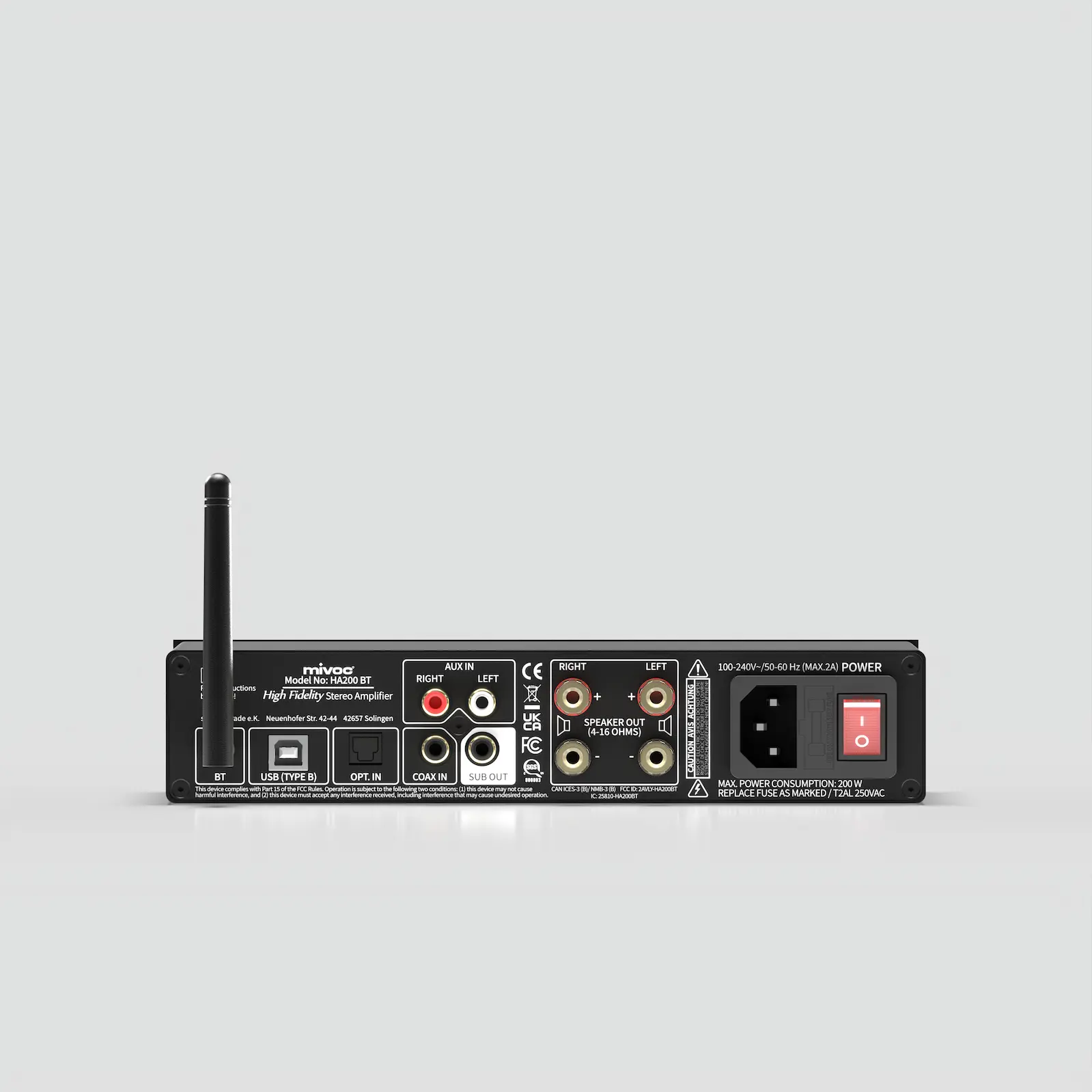

Outputs	Stereo loudspeaker output 4 - 16 Ohm (loudspeaker terminals), Subwoofer output SUB OUT (RCA/Cinch)
Protective circuits	Overvoltage, overcurrent, short circuit

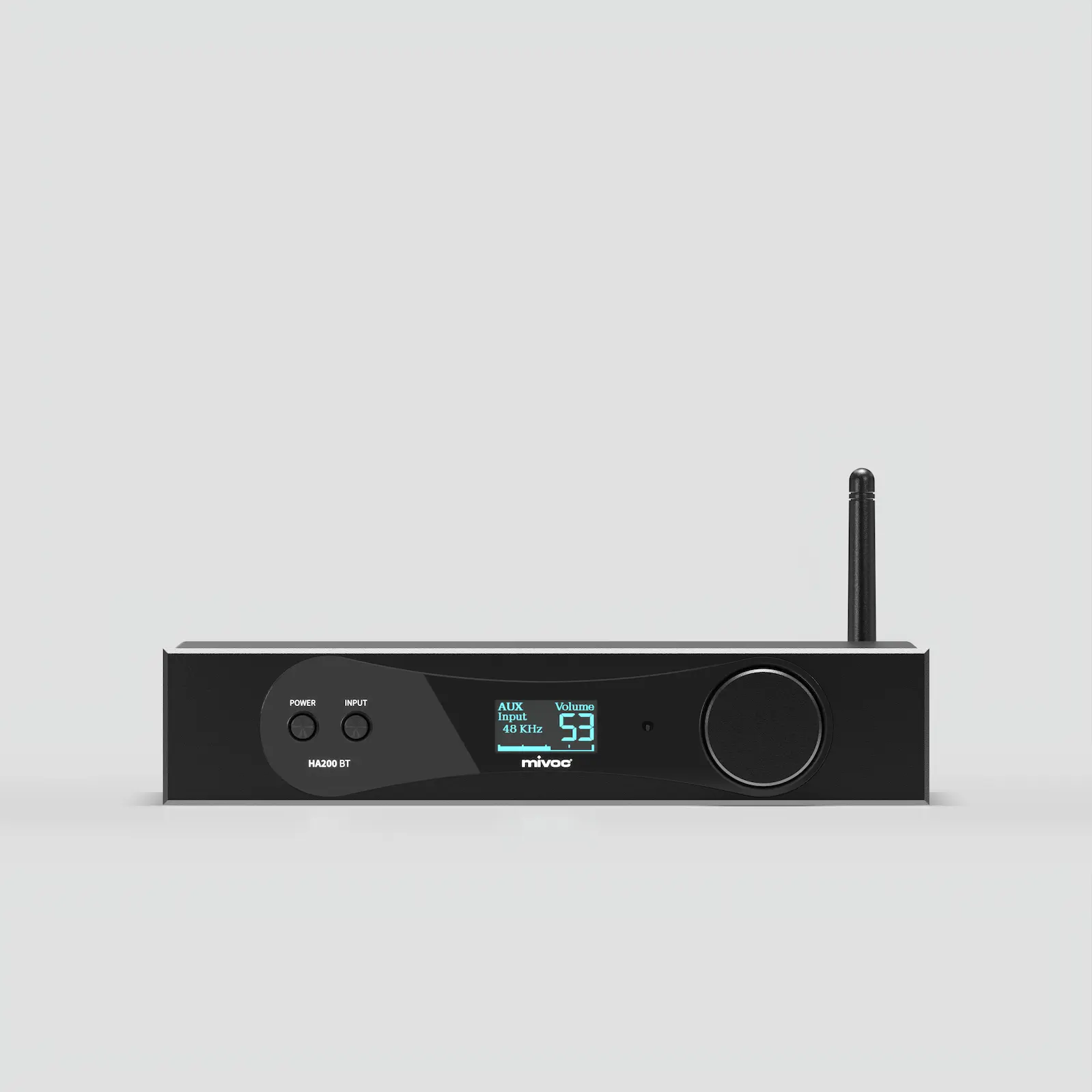

Control elements	Power supply on/off, STANDBY (ON/OFF), input selection button (INPUT), volume control knob with mute function
Remote control elements	Standby, Input, Mute, B+ / B- (Bass), T+ / T- (Treble), Loudness, Setup, Direct, Lautstärke +/-, Display
DSP	Bass (+/- 6 dB), Treble (+/- 6 dB), Loudness, Presets
Display	monochrome OLED (can be switched off)
Operating indication	Power switch (illuminated), display
Operating voltage	100 VAC - 240 VAC / 50 Hz - 60 Hz (max. 2A)
Power supply	IEC connection with earthing contact
Max. power consumption	200 watts
Remote control power supply	2 x AAA batteries
Fuse	T2 AL 250 VAC
Product dimensions [W x H x D]	230 x 99 x 215 mm
Weight	1.7 kg
Weight with packaging	2.2 kg

[1] depending on the selected preset, [2] according to IHF-A-202 standard

Frequently asked questions

Can a record player be connected to the LINE input?+

Either a record player with a built-in preamplifier or a record player with an external preamplifier can be connected to the LINE input.

Can I connect my CD player or other playback device with line level to the LINE input?+

Yes, of course. That’s not a problem.

Can I plug a USB stick directly into the USB port and play music on it?+

No. The USB port on the HA200BT does not fit a USB stick, nor does the amplifier have the corresponding playback software.

Do I need to install a driver when I connect the HA200 BT to my computer via USB?+

The HA200 BT is usually recognised without any driver installation and is available as an additional audio output option.

Can I connect a record player with USB output to the USB port?+

No, unfortunately that is not possible.

What sampling rates can the digital inputs process?+

The two digital inputs process sample frequencies and bit depths of up to 192 kHz and 24 bit.

Do I need the Bluetooth antenna or can I do without it?+

Yes, the antenna is necessary!

How do I connect a streaming stick, BluRay player, DVD player and games console?+

You have the best connection option if your TV has multiple HDMI inputs. Connect your devices to the HDMI inputs of your TV and the HA200 BT to the optical output (Toslink).

Is the SUB OUT tuned to the hYPE 10 subwoofer or can other subwoofers also be connected?+

Der SUB OUT funktionert genauso gut mit anderen Subwoofern. Der Tiefpassfilter des Subwoofers sollte auf einen Wert zwischen 80 Hz und 120 Hz eingestellt werden. Teste einfach verschiedene Einstellungen und entschiede dich für die Einstellungen, die für dich am besten klingt.

Is the level of a subwoofer connected via the SUB OUT also controlled when adjusting the volume?+

The volume of the subwoofer is also adjusted when you change the volume on the amplifier. Set a comfortable listening volume for tuning the subwoofer to your stereo speakers on the amplifier. Now adjust the volume of the subwoofer using the Level control on the subwoofer. If it sounds good to you, you have matched the volume of the subwoofer and your stereo speakers. From now on, you can change the volume for the entire system on the amplifier. The ratio between the subwoofer and stereo speakers remains the same.

Do the BASS control or the LOUDNESS setting also affect a connected subwoofer?+

Yes, these settings have a ‘global’ effect, i.e. also on the SUB OUT and thus on a connected subwoofer.

What is the maximum cable diameter that can be used on the screw terminals for the speakers?+

Max. 2.5 qmm cables fit the built-in speaker terminals. 4 qmm can be connected with speaker plugs. Even with 2.5 qmm, such plugs facilitate connection to the speaker terminals.

Are there any filters or equalisers in the FLAT preset?+

No, there are neither filters nor equalisers in the PRESET FLAT. The GEN FR and GEN SAT presets only contain filters but no equalisers.

What is the difference between the FLAT and GEN FR presets?+

The GEN FR preset has a high-pass filter from approx. 15 Hz (SUBSONIC FILTER). It is particularly suitable for connecting a record player if it is connected via an external preamplifier or if the record player has a built-in preamplifier but does not have a SUBSONIC FILTER.

What is the GEN SAT preset suitable for?+

With the GEN SAT preset, any hi-fi speaker can be connected together with a subwoofer. This preset has a high-pass filter at 100 Hz, which can reduce the load on smaller hi-fi speakers in particular and significantly improve playback.

Can I also operate third-party hi-fi speakers with the HM5 FR Preset?+

Yes, if these speakers are of a size comparable to the HM5 (compact / bookshelf speakers with 5.25‘ – 6.5’ / 13 – 16 cm bass system), this will probably work very well. For larger speakers or floorstanding speakers, you should rather use the GEN FR preset.

What does the Vc mean in the preset names?+

The Vc stands for VOICE. The frequency response in these presets is slightly raised in the speech range, which makes them easier to understand. Incidentally, this also works with HM5-comparable hi-fi loudspeakers.

What are presets good for?+

Presets of the HA200 BT enable optimised operation and offer you the best sound conditions. The presets harmonise the amplifier with the connected loudspeakers and the application area. With the FLAT preset, the signal is reproduced as it is present at the inputs. The sound you perceive is created exclusively by the speakers used and the source signal. The FLAT preset does not include a protection function for connected speakers. The GEN presets are the best presets if you are using speakers of a different brand. The HM5 presets are a perfect match for our HM5 hi-fi stereo speakers.

Does the SUB OUT work with all PRESETS?+

Yes, the SUB OUT works with all PRESETS.

What batteries does the remote control need?+

2 x AAA batteries. As rechargeable batteries often work with a lower voltage (1.2 – 1.3 V instead of 1.5 V), these are possible but not recommended. Rechargeable batteries run out more quickly.

What does the DIRECT button on the remote control mean?+

Press the DIRECT button to switch off all sound settings (PRESET / BASS / TREBLE / LOUDNESS). Pressing DIRECT again switches all sound settings back on.

What is the remote control's range?+

The remote control should be within sight in order to function properly.

Does the HA200BT consume power when it is switched off using the switch on the back?+

No, the HA200BT does not consume any power when the switch is flipped. If the HA200BT is switched off using the remote control or the POWER switch on the front, the HA200BT is in standby mode, in which little but still some power is consumed. Incidentally, even if the HA200BT is switched off using the switch on the back, settings such as INPUT and PRESET are retained.

Can the display be switched off?+

Yes, with the remote control.

Why do my subwoofer and some speakers not work correctly when connecting my TV to the Mivoc system via Bluetooth or optical cable?+

Audio playback via the subwoofer and speakers may not work properly due to incorrect audio settings on the TV. Make sure that the audio output is set to PCM stereo to distribute the audio information correctly and play all channels.

Where can I find the user manual?+

You can find the user manual on the relevant product page and in the download section of our website.
